Test Boards

Fast, Flexible and Reliable

End of line testers, whether they are ICT or functional (FKT), require the use of solid-state relays (SSR) for creating paths for applying the correct stimulus into the device under test (DUT) pins.

This fact makes Relay Boards one of the most critical parts of the system due to several considerations: reliability, simplicity, and cost. Lynx Tester has a small but sufficient set of Switch Matrix Relay Boards, each designed for a specific purpose: DUT power supply, 4-wire measurements, ICT, GPIO or the supervision of the injected signal.

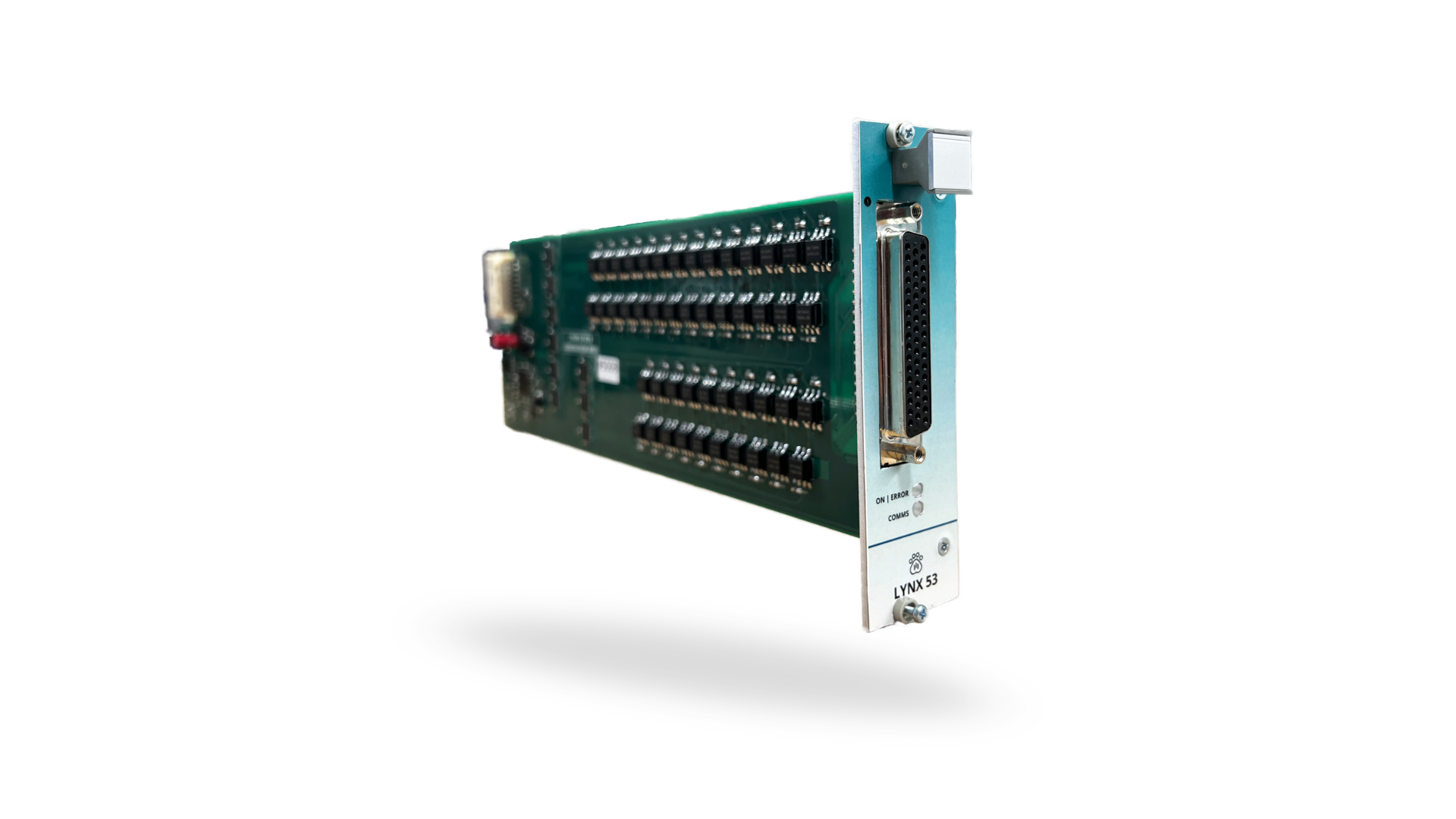

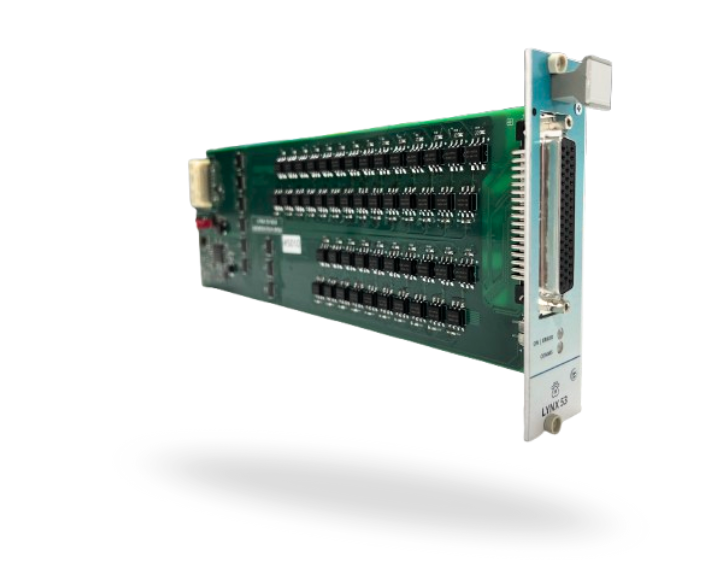

Lynx 53

CAN controlled, solid state-based relay board used to inject external electric stimulus into a DUT pin.

Up to 24 pins per boards. Each DUT pin can be also connected to DMM+ or DMM- inputs for the voltage supervision of the injected stimulus.

Lynx 53
Lynx 300

Lynx 300

CAN controlled board intended to stimulate DUT inputs. It features multiple output types: ​

  • 12x digital channels

  • 8x analog channels

  • 4x PWM

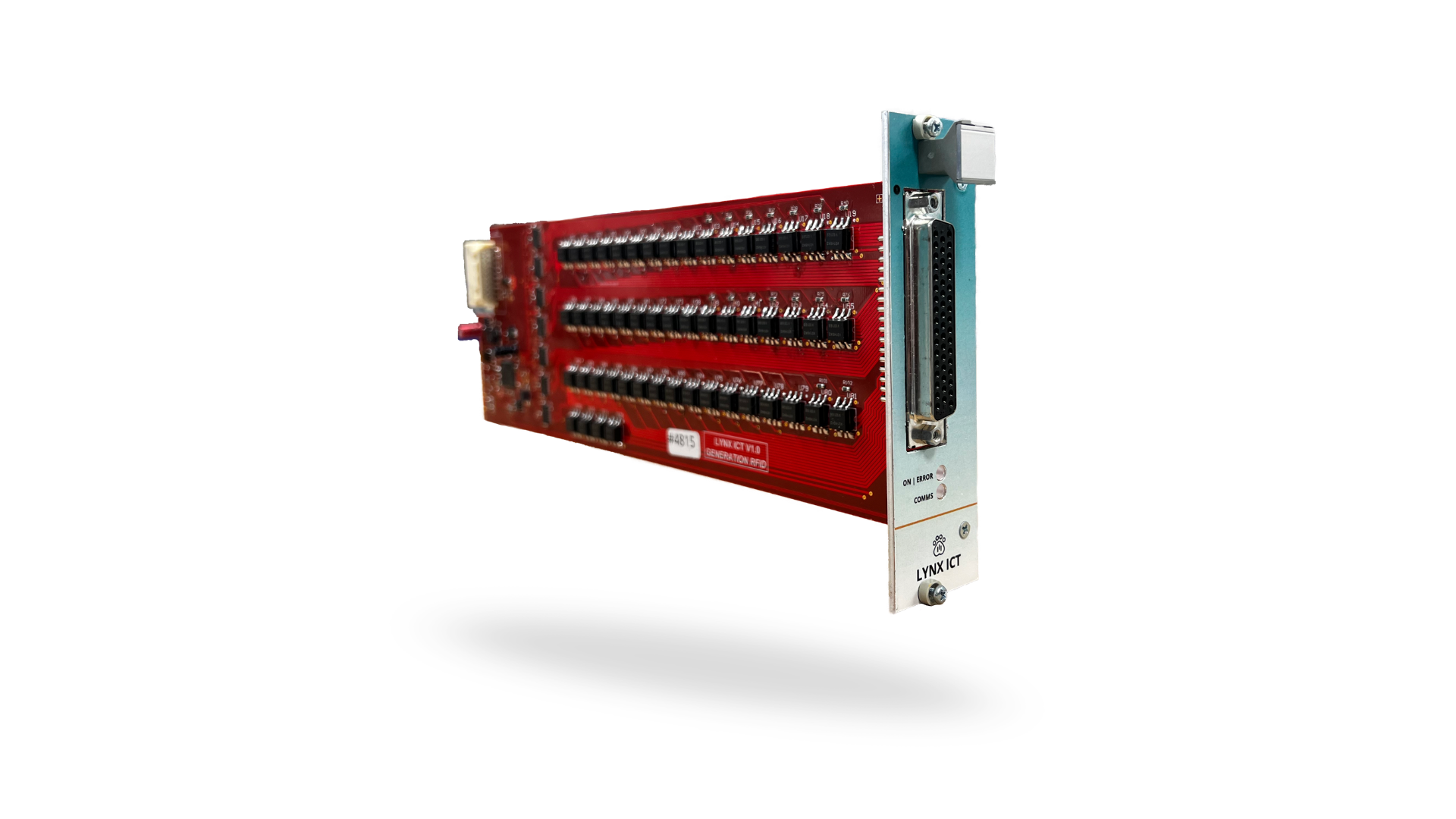

LYNX ICT

CAN controlled, solid state-based relay board that connect each DUT pin into the DMM+ or DMM- inputs for component value measurement or voltage supervision. Up to 50 pins per board.

Lynx ict

DLM1615

The DLM1615 is a software-controlled electronic load module designed for product testing in development, validation, and production within automotive and energy sectors.

It supports programmable load configurations and specific simulations for DC current, including complex current profiles, with control options via CAN or USB.
